4.3.24.2  Associated Analog Tag

The Associated Analog Tag is related to digital tag type to display the value of associated analog tag in Alarm summary. One digital can relate to one analog tag. The Associated Analog Tag helps operators to add columns to display the alarm status and alarm value of digital tags in Alarm Summary.

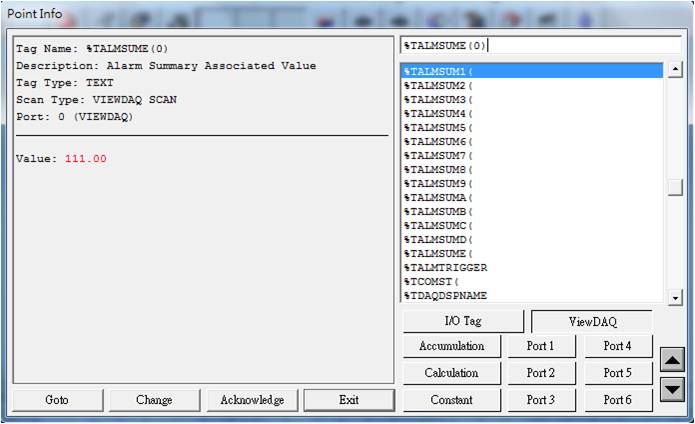

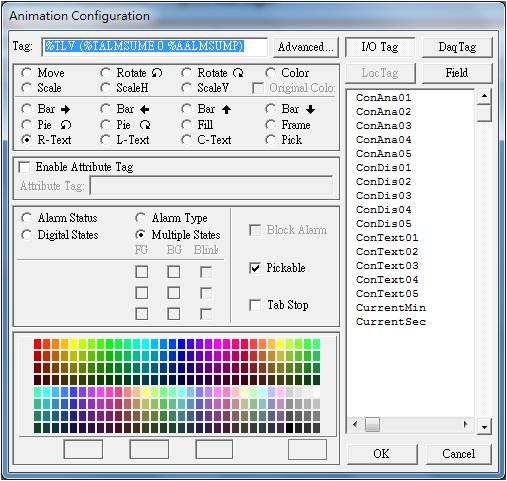

After the Associated Analog Tag configuration, open the Alarm Summary page in View DAQ and use View tag %TALMSUME to see the associated Analog Tag value when the alarm happened. Display the value in Alarm summary is to add the column with View tag %TALMSUME in Almsum.dxx.

Range:              tagname
Field Type:        Text
Tag field:
