Real-time Bar Group Comparison use Bar Chart to display the real-time data of WebAccess Tag and compare other trend groups in one Widget. Each bar changes the tag value with data refresh time.22.4.7 Real-Time Bar Group Comparison
Real-time Bar Group Comparison use Bar Chart to display the real-time data of WebAccess Tag and compare other trend groups in one Widget. Each bar changes the tag value with data refresh time.
Functions：
Support maximum 12 trends in one Trend Group.
Support three Bar types：bar, stacked bar, full stacked bar

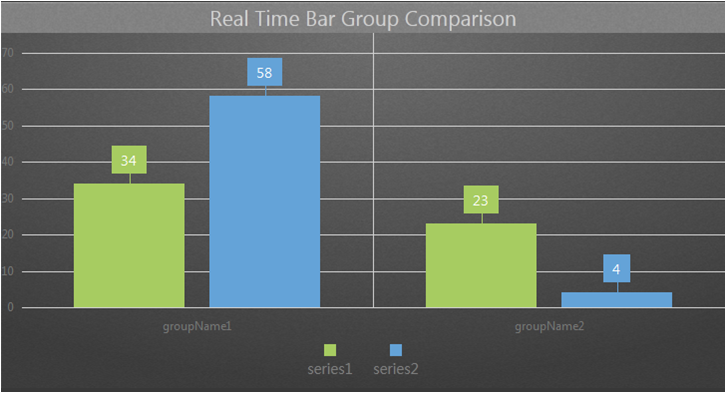

Real-Time Bar Group Comparison picture
Properties：
Preferences：Build the different Properties of Real-time Bar Group Comparison widget. Users can choose one Preferences and apply the properties directly next time usage.
Create：Create the current Properties as this widget Preferences
Update：Change the Properties of this widget Preferences
Delete：Delete this widget preferences
Set as default：User can set the widget preferences as default Widget display
Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…
Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area
Frame Color：Widget frame color
Background：Set Widget background Color.
Image：Upload and delete Widget background image
Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk
Upload the image from folder
Cancel the background
Extended：Extend Widget background image to whole widget.
Background without title：The background extend to Title area or not
Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.
Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).
Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title
Text：Type the title in three languages
Font Name：Set the Title font
Font Size：Set the Title font size
Font Color：Set the Title font Color
Background：Set the Title area background Color
image：Upload the Title area background image
Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk
Upload the image from folder
Cancel the background
Extended：Extend the background image to whole title area
Text：Set enable or disable auto resize text with resolution.
Control Panel：The property enables View control Panel in PC mode and Mobile mode. Enabling View control Panel can switch tag group to display in the widget, and don’t need Commander Widget connections. The Control Panel show in the bottom of Widget.
Legend：Visible or Invisible the Legend of the Widget
Placement：Locate Legend inside or outside the grid.
Location：Choose the Location of Legend
Color：Set the text color of Legend
Tooltip：Set the properties of Tooltips. Tooltips show the data value when moving the mouse to the data point in the trend.
Tooltip：Visible or Invisible Tooltips in the Widget
Size：Set the Tooltip font Size
Color：Set the Tooltip text color
Label Setting：Enable or Disable the data Label in the widget
Palette：Set color of each trend
Tag：Connect the Series and the Tag Group to display comparison and set the properties of the Series
Name of Series group
Choose one Tag of the trend
User-Defined Color：Enable User-Defined Color of the Series
Add Group：Add Tag group
Color：Set Other text color, Button color, and button text color in control panel
