22.4.36 Single Line Text

Single Line Text is used to display a single line of text.

Function：

• Support MUI

• Support place images in left and right sides

• Support set font properties

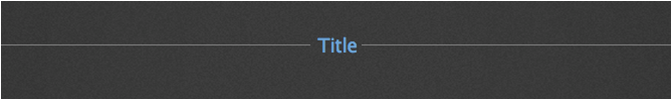

Single Line Text picture

Properties：

• Preferences：Build the different Properties of Single Line Text widget. Users can choose one Preferences and apply the properties directly next time usage.

• Create：Create the current Properties as this widget Preferences

• Update：Change the Properties of this widget Preferences

• Delete：Delete this widget preferences

• Set as default：User can set the widget preferences as default Widget display

• Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…

• Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area

• Frame Color：Widget frame color

• Background：Set Widget background Color.

• Image：Upload and delete Widget background image

•  Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk

•  Upload the image from folder

•  Cancel the background

• Extended：Extend Widget background image to whole widget.

• Background without title：The background extend to Title area or not

• Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.

• Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).

• Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title

• Text：Type the title in three languages

• Font Name：Set the Title font

• Font Size：Set the Title font size

• Font Color：Set the Title font Color

• Background：Set the Title area background Color

• image：Upload the Title area background image

•  Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk

•  Upload the image from folder

•  Cancel the background

•  Extended：Extend the background image to whole title area

• Text：

• Text : Set Text to be the display in the widget. Supported by MUI.

• Font : Set the font of the Text.

• Color : Set the color of the Text.

• Align : Set the horizontal position of the Text. Ex: Left, Canter, or Right.

• Size : Set the font size of the Text in PX or EM.

• Font Weight : Set the font weight of the Text. Ex, Normal or Bold.

• Left Icon : Set the left hand side icon from file.

• Right Icon : Set the right hand side icon from file.

• Left Line : Set the style of the left hand side line. Ex : None, Solid, Dotted, Dashed, Double, Groove, Ridge, Inset, or Outset.

• Width : Set the width of the left hand side line in PX or EM.

• Color : Set the color of the left hand side line.

• Right Line : Set the style of the right hand side line. Ex : None, Solid, Dotted, Dashed, Double, Groove, Ridge, Inset, or Outset.

• Width : Set the width of the left hand side line in PX or EM.

• Color : Set the color of the right hand side line.
