Select Box is the Data Commander Widget. Set the option to connect with other widget for switching different value.22.4.34 [Commander]Select Box
Select Box is the Data Commander Widget. Set the option to connect with other widget for switching different value.
Function
Support multiple options to map different value
Support set font properties

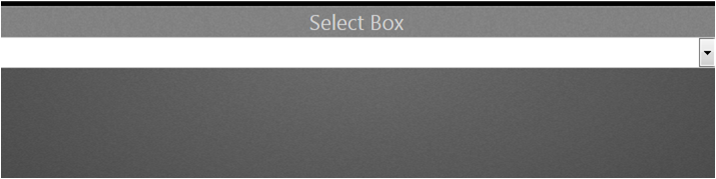

Select Box picture
Properties：
Preferences：Build the different Properties of Select Box widget. Users can choose one Preferences and apply the properties directly next time usage.
Create：Create the current Properties as this widget Preferences
Update：Change the Properties of this widget Preferences
Delete：Delete this widget preferences
Set as default：User can set the widget preferences as default Widget display
Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…
Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area
Frame Color：Widget frame color
Background：Set Widget background Color.
Image：Upload and delete Widget background image
Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk
Upload the image from folder
Cancel the background
Extended：Extend Widget background image to whole widget.
Background without title：The background extend to Title area or not
Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.
Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).
Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title
Text：Type the title in three languages
Font Name：Set the Title font
Font Size：Set the Title font size
Font Color：Set the Title font Color
Background：Set the Title area background Color
image：Upload the Title area background image
Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk
Upload the image from folder
Cancel the background
Extended：Extend the background image to whole title area
SelectBox Setting：The widget mapping setting
Option Number : Set the number of widget maps to the Select Box.
Title : Set the text that will be displayed in the Select box.
Option : Match the option text with the group name of the widget.
Default : Set the default/initial selected option of the Select Box widget.
Delete Group : remove the selected group from the SelectBox Setting.
