22.4.32 [Commander] Date Time

 Date Time is the Date Commander Widget linked the other trend/bar widget to switch and display data value in different data period.

Function

•  Support two modes of Time setting

• Current：Display the data last/maximum/minimum/average value from the historical data based on the time/day (unit seconds/minutes/hours/days) before current time

• Start End：Choose data last/maximum/minimum/average value from the historical data based on setting Start time and end time.

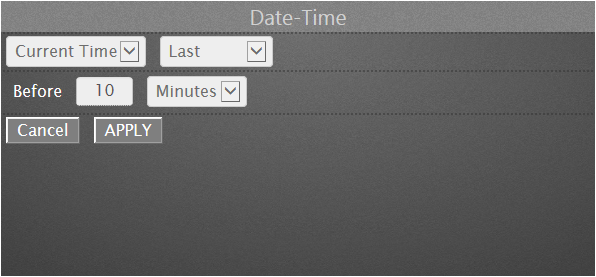

Date Time picture

Properties：

• Preferences：Build the different Properties of Date Time widget. Users can choose one Preferences and apply the properties directly next time usage.

• Create：Create the current Properties as this widget Preferences

• Update：Change the Properties of this widget Preferences

• Delete：Delete this widget preferences

• Set as default：User can set the widget preferences as default Widget display

• Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…

• Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area

• Frame Color：Widget frame color

• Background：Set Widget background Color.

• Image：Upload and delete Widget background image

•  Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk

•  Upload the image from folder

•  Cancel the background

• Extended：Extend Widget background image to whole widget.

• Background without title：The background extend to Title area or not

• Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.

• Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).

• Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title

• Text：Type the title in three languages

• Font Name：Set the Title font

• Font Size：Set the Title font size

• Font Color：Set the Title font Color

• Background：Set the Title area background Color

• image：Upload the Title area background image

•  Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk

•  Upload the image from folder

•  Cancel the background

•  Extended：Extend the background image to whole title area

• Default date：Set time mode and data type.

• Current time

• Before ：set the time before current time.

• Start interval

• Time interval ：set total time interval.

• Start date：set start sate.

• Hours：Set hour.

• Minutes：Set minutes.

• Color：Set Other text color, Button color, and button text color in panel
