22.4.12 Historical Bar Line

Historical Bar Line use Bar Chart to display historical data of WebAccess Tag and add line trend to display the total/average/maximum/ minimum value in each data time in one Widget.

Functions：

• Support maximum 12 bar in one data time

• Support three Bar types：Bar, Full stacked bar, and Stacked bar

• Support Commander Widget (buttons / radio buttons / drop-down menu) connections to switch the trend group in Dashboard Viewer.

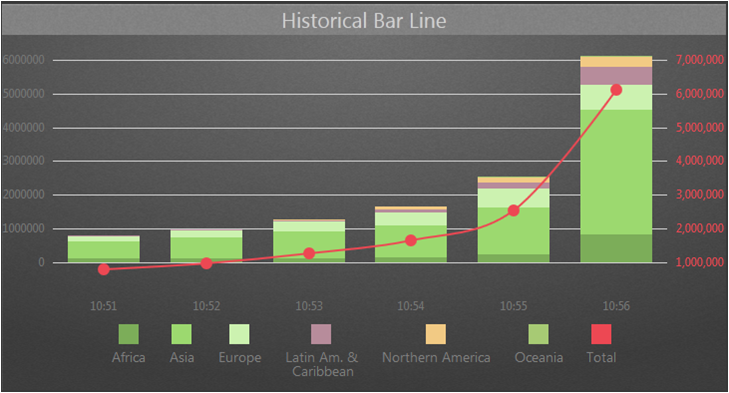

Historical Bar Line picture

Properties：

• Preferences：Build the different Properties of Historical Bar Line widget. Users can choose one Preferences and apply the properties directly next time usage.

• Create：Create the current Properties as this widget Preferences

• Update：Change the Properties of this widget Preferences

• Delete：Delete this widget preferences

• Set as default：User can set the widget preferences as default Widget display

• Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…

• Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area

• Frame Color：Widget frame color

• Background：Set Widget background Color.

• Image：Upload and delete Widget background image

•  Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk

•  Upload the image from folder

•  Cancel the background

• Extended：Extend Widget background image to whole widget.

• Background without title：The background extend to Title area or not

• Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.

• Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).

• Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title

• Text：Type the title in three languages

• Font Name：Set the Title font

• Font Size：Set the Title font size

• Font Color：Set the Title font Color

• Background：Set the Title area background Color

• image：Upload the Title area background image

•  Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk

•  Upload the image from folder

•  Cancel the background

•  Extended：Extend the background image to whole title area

• Text：Set enable or disable auto resize text with resolution.

• Control Panel：The property enables View control Panel in PC mode and Mobile mode. Enabling View control Panel can switch tag group to display in the widget, and don’t need Commander Widget connections. The Control Panel show in the bottom of Widget.

• Chart Type：Set Chart Type in Widget display

• Tag Number：Set the tag Number in Widget display

• Type：Choose the display line type, including line, Bar, Stacked Bar, Full stacked Bar

• Initial Position：Set the data appears direction from right to left or left to right

• Line Setting

• Line For：Display total/average/maximum/ minimum value in each data time

• Marker Text：The text of the markers

• Axis Position：The position of x axis value of Line

• Axis Title：Type the axis title of the x axis of Line

• Size：Set Axis Title font size

• Font：Set Axis Title font type

• Color：Set Axis Title font color

• Line：Set line type, such as line, spline, or stepline

• Line Color：Set line color

• Grid：set the grid properties

• Grid Width：Set the grid width of the Widget

• Grid Color：Set the grid color of the Widget

• Text Color：Set the grid data text color of the Widget

• Y axis：Visible or Invisible the Y axis of the Widget

• X axis：Visible or Invisible the X axis of the Widget

• Legend：Set the graphic Legend

• Legend：Visible or Invisible the Legend of the Widget

• Placement：Locate Legend inside or outside the grid.

• Position：Choose the Location of Legend

• Color：Set the text color of Legend

• Size：Set the text size of Legend

• Tooltip：Set the properties of Tooltips. Tooltips show the data value when moving the mouse to the data point in the trend.

• Tooltip：Visible or Invisible Tooltips in the Widget

• Size：Set the Tooltip font Size

• Color：Set the Tooltip text color

• Label Setting：Enable or Disable the data Label in the widget

• Time：Choose Start Interval mode and Current Time mode in time setting.

Current time：

•  Before：Set the time before current time, then choose time type.

Start Interval：

• Time Interval：Set total time interval and type

• Start Date：Set start date.

• Hours：Set hour

• Minutes：Set minutes

• Palette：Set color of each bar

• Commander：Set the link with Commander widget in the same Dashboard area.

• Group：Choose one connection to switch Tag group display of the trend

• Time：Choose one connection to switch and display data value in different data period.

• Tag：Connect the Tag and the trend display and set the properties of the trend

• Group Name：Name of Tag Group

• Number：The number of tags in a group

• Choose one WebAccess Tag of the trend

• Legend Text：The Legend Text of the tag

• User-Defined Color：Enable User-Defined Color of the trend

• Add Group：Add trend group (maximum 12 tags for a group). User can switch trend group with control panel.

• Color：Set Other text color, Button color, and button text color in control panel
