22.1.3 Dashboard Project Configuration

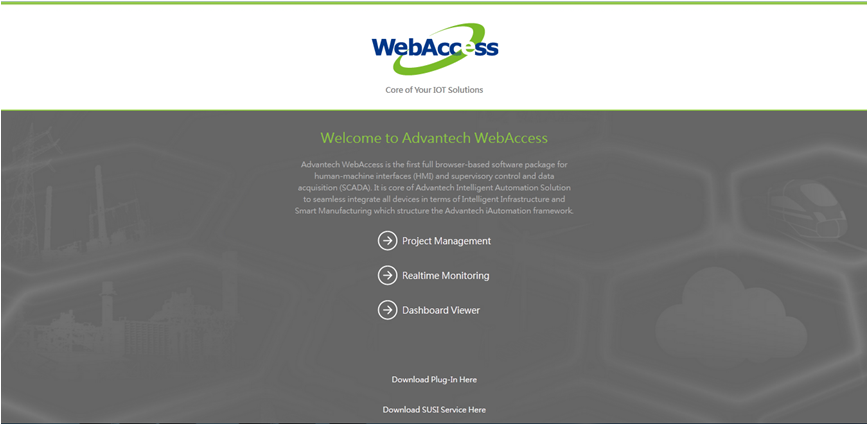

1.      Open WebAccess Project Home Page

2.      Go to Project Management and Login the Account

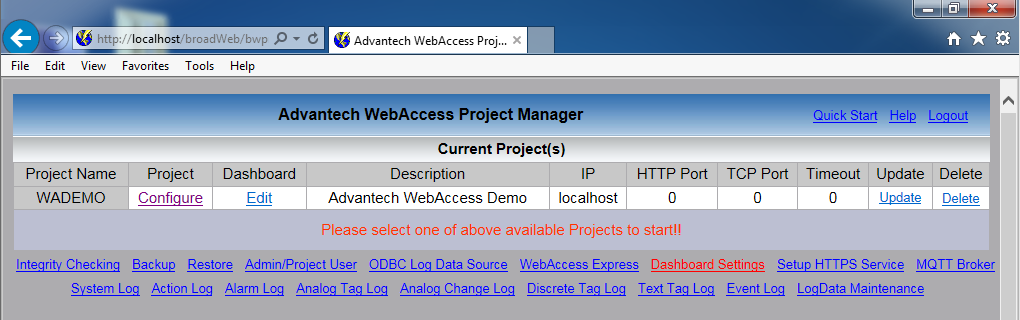

3.      Choose the Project and go to Dashboard Edit

      For WebAccess/SCADA V8.3, Dashboard update to version 2.0, over websocket to do data transfer from WebAccess/SCADA, so when using Windows 7 or Windows Server 2008, the Dashboard port needs to be set in different windows OS. Using Windows 8, Windows 10 or Windows Server 2012 or 2016, you can still use 80 port for Dashboard.

      The default port of Dashboard is 80 port.

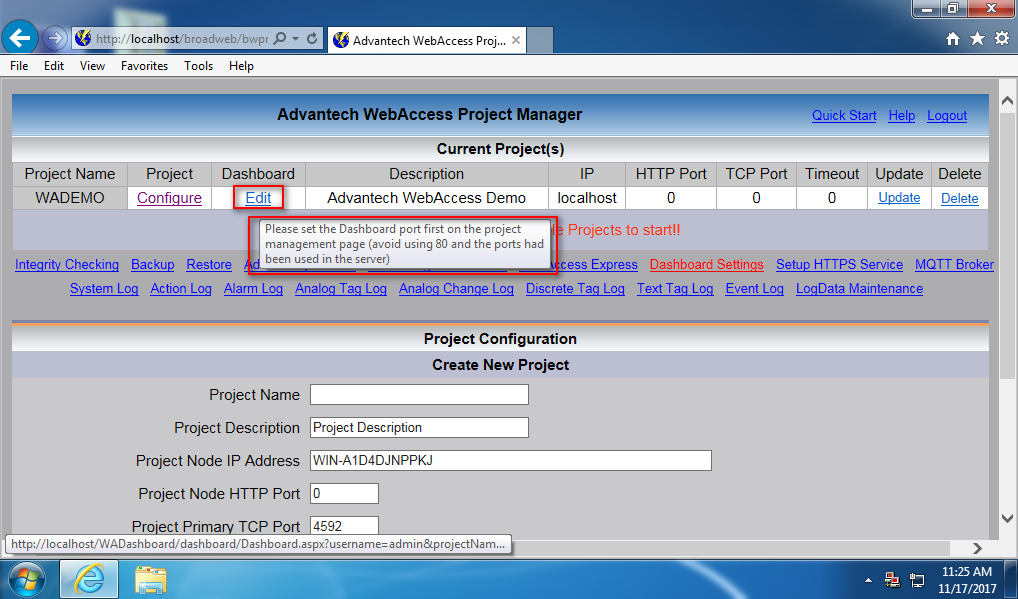

       For Windows 7 or Windows Server 2008, when user use Dashboard the first time, put the mouse on Dashboard "Edit" link, a message will display and remind you to modify Dashboard port, avoid using 80 port and other ports that had been used in the OS.

      Click Dashboard Seeting (in red font).

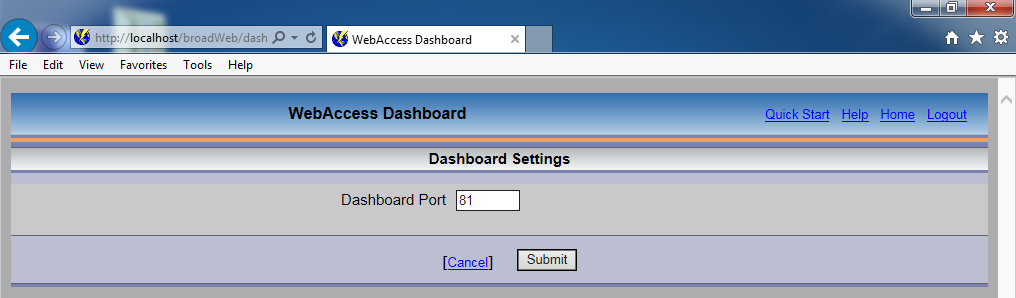

      Set the Dashboard port: 81 or others, make sure the port had not been used in the OS.

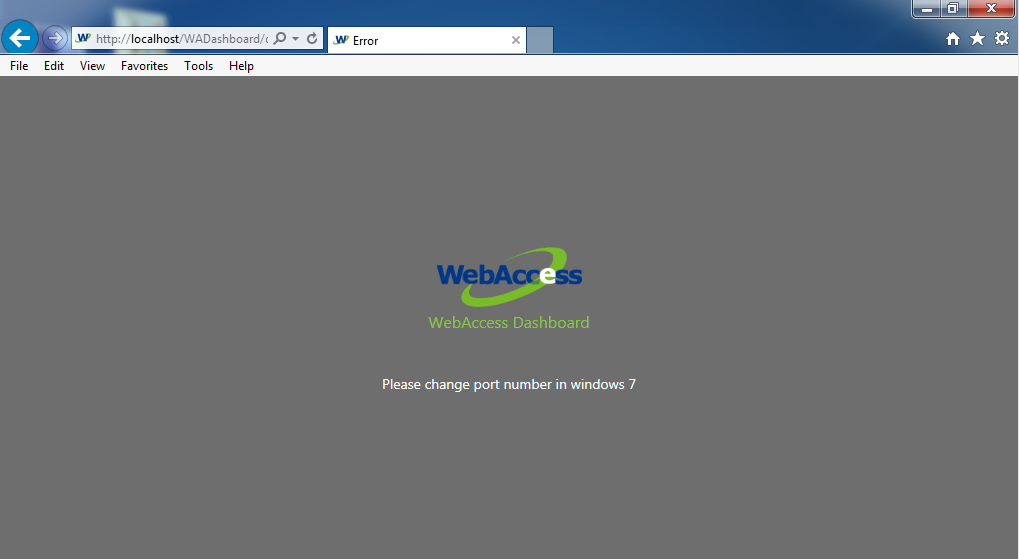

     If you don't modify the port, enter the Dasdhboard Editor, there will also a windows to remind you to modify the port.

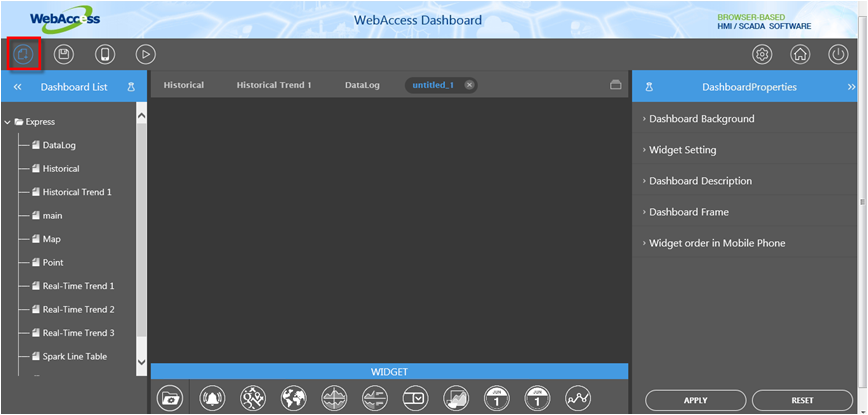

4.      Create New Dashboard

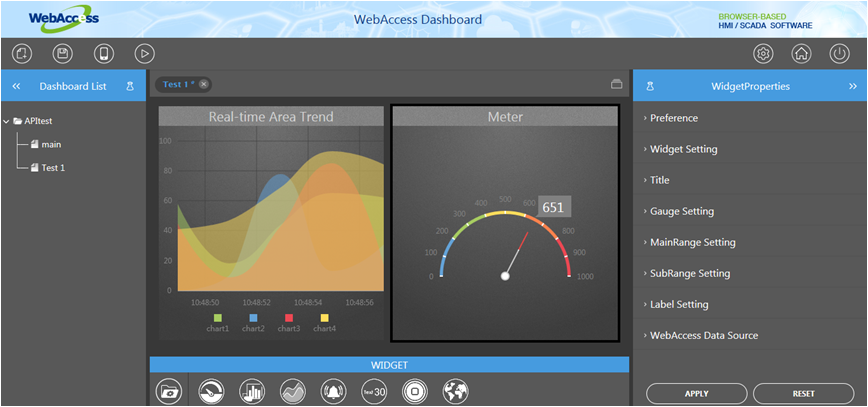

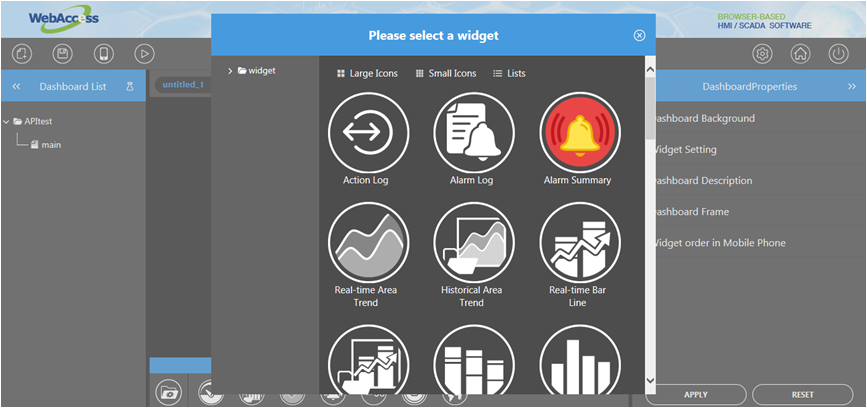

5.      Drag the Widget Library and Choose widget to edit the Dashboard page in Dashboard Area.

6.      Config the page with the right pane Properties

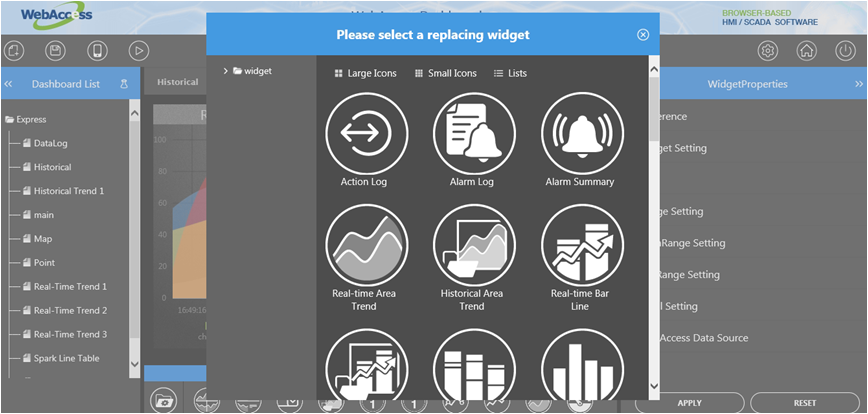

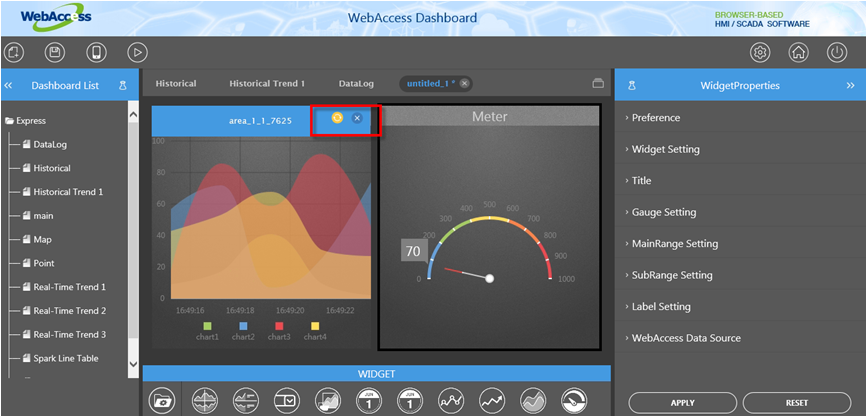

7.   Change/Cancel the widget：Click the  button on the top of widget to open the widget library and select the replaced widget.  is to delete the Widget.

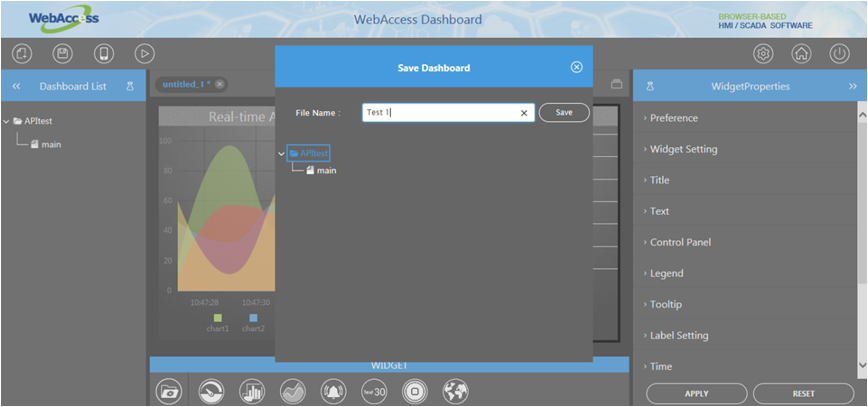

8.      Save the Dashboard page

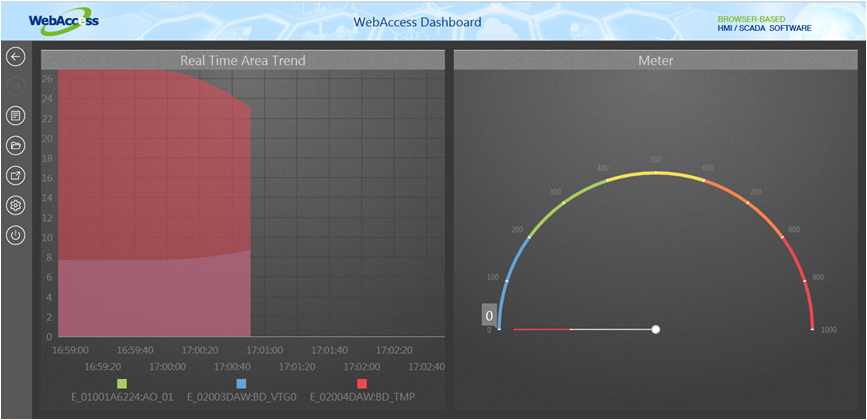

9.      Go to dashboard Viewer to view the result

10.      Dashboard View
