The Recipe List Dialog Box is a popup in VIEW that allows Operators to:

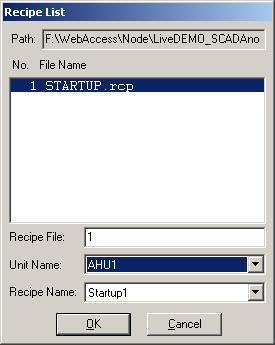

Figure 13.6 Recipe List Dialog Box
· Select a Recipe File
· Select a Unit (if there are multiple process units or equipment that a recipe could be sent to)
· Select a Recipe (if there are multiple recipes within the Recipe File)
The toolbar icon
, the F8 key and <DIALOG>RECIPE pushbutton keymacros will call up the Recipe Dialog Box allowing operators and users to select a recipe file, recipe and unit.
Figure 13.7 Single Recipe File with multiple Recipe Names and Units
The Recipe List is generated automatically by Advantech WebAccess/SCADA and allows you to easily implement recipes that can be downloaded for multiple equipment line-ups, different batch recipes for the same equipment including blending, start-up and shutdown procedures, equipment turnarounds and other process control applications.
Each time an operator opens a recipe to Download, an entry is made in the Action Log.
Operators and Users must have the appropriate Area and Level Security to download.
