10.12.3       MULTI-FINGER TAP

Briefly touch the surface with multiple fingertips. Users can define the action of two to five fingertips via the macro in WebAccess KeyMapping function.

1.      In the ViewDAQ page, the default action of the two-finger tap is the right mouse button.

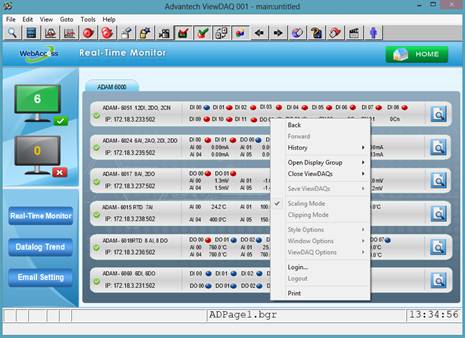

Figure 10.12.3.1 Default action of two-finger tap in ViewDAQ

2.      Set the macro of the multi-finger tap：WebAccess provides four macros <TAP2F>, <TAP3F>, <TAP4F>, <TAP5F> for multi-finger tap gesture settings in the KeyMapping function

Figure 10.12.3.2 KeyMapping in WebAccess

The Macro of the Multi-finger Tap gesture：

For example: Set <TAP3F> transfer to F4. During runtime, briefly tapping the surface with three-fingers is the same as pressing the F4 button on the keyboard, i.e. the Datalog Trend window will pop-up.

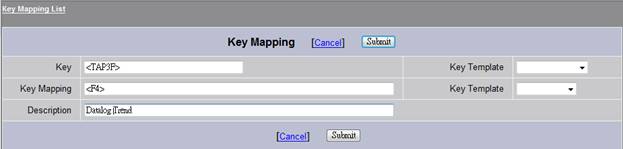

Figure 10.12.3.3 Configure Macros in WebAccess KeyMapping

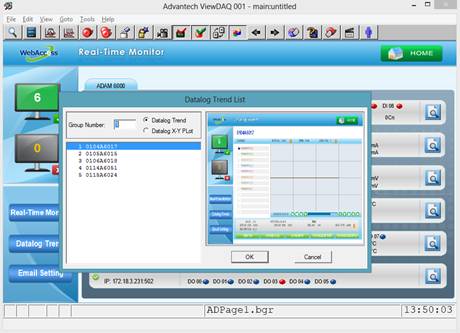

Figure 10.12.3.4 Datalog Trend window pop-up.
